Farmer-Helper FH-FMC Commercial Centered Flail Mower
Working Width
48″ – 68″
Powered By:
Tractor PTO
24- 65 HP
Comes with 27 oz Blades
Hydraulic Offset Available
Optional Y-Blades
Suitable for:
Brush up to 3″ thick
Playlist
-

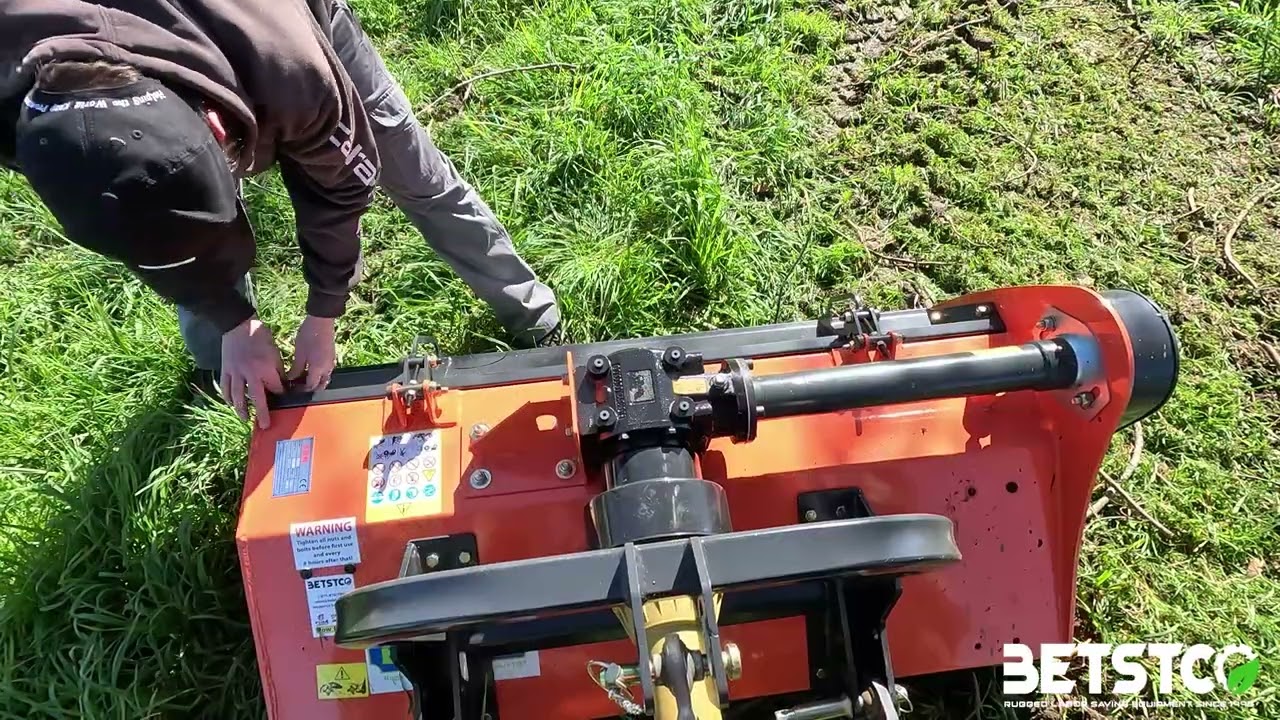

53″ Commercial Centered Flail Mower (Open Deck), FH-FMC135-OT
$3,000.00 Add to cart -
53″ Commercial Centered Flail Mower with Hydraulic Offset, FH-FMC135H
$3,710.00 Sorry but this currently isn't in stock -
53″ Commercial Centered Flail Mower, FH-FMC135
$2,950.00 Sorry but this currently isn't in stock -
53″ Commercial Centered Flail Mower, FH-FMC135-F (faded)
$2,800.00 Add to cart -
60″ Commercial Centered Flail Mower with Hydraulic Offset, FH-FMC155H
$3,610.00 Add to cart -
60″ Commercial Centered Flail Mower, FH-FMC155
$3,100.00 Sorry but this currently isn't in stock -
68″ Commercial Centered Flail Mower (Open Deck), FH-FMC175-OT
$3,350.00 Sorry but this currently isn't in stock -
68″ Commercial Centered Flail Mower (Open Deck), FH-FMC175-OT.R refurbished, slight vibration, no warranty
$3,300.00 Sorry but this currently isn't in stock -
68″ Commercial Centered Flail Mower with Hydraulic Offset, FH-FMC175H
$3,810.00 Add to cart -
68″ Commercial Centered Flail Mower, FH-FMC175
$3,300.00 Add to cart -
68″ Commercial Centered Flail Mower, FH-FMC175-F (faded)
$3,350.00 Add to cart -
78″ Commercial Centered Flail Mower, FH-FMC195
$3,723.00 Add to cart -
78″ Commercial Centered Flail Mower, FH-FMC195-F (faded)
$3,573.00 Add to cart
Who is Farmer-Helper?
Farmer Helper Machinery Co., Ltd (FHM) was established in 2009. The factory area is more than 20,000 square meters and houses 4 Metal laser cutting machines and more than 80 processing machines.
FHM manufactures a full range of high-quality implements for small to medium-sized tractor owners across the world. Farmer’s Helper has become an integral manufacturing premise for agricultural machines. Our team’s priority is customer success and satisfaction. We constantly improve our machines to meet customer demands and expectations.
| Spec | FH-FMC125 |
| Working Width | 49” |
| Overall Width | 55” |
| Min. HP Req. | 24 HP |
| Hitch | Cat I |
| Gear Box Rating | 65 HP |
| Cutting Offset | Zero – Centered Cut |
| Std Hammer Blades | 20 Hammer Blades |
| Optl “Y”/Rock Blades | 40 “Y”/Rock Blades |
| Housing Thickness | 4mm |
| Side Plate Thickness | 5/16” |
| Rotor Dia. | 4” |
| Rotor Shaft Dia. | 4 1/2” |
| Blade Swing | 15” |
| No. of Belts | 2 Belts |
| 3pt Conn. Width | 27 1/2 |
| Driveline Type | Series 4 quick connect Shear bolt, 6-spline |
| Weight | 581 lbs |
| Crated Weight | 621 lbs |
| Spec | FH-FMC135 |
| Working Width | 53” |
| Overall Width | 59” |
| Min. HP Req. | 26 HP |
| Hitch | Cat I |
| Gear Box Rating | 65 HP |
| Cutting Offset | Zero – Centered Cut |
| Std Hammer Blades | 20 Hammer Blades |
| Optl “Y”/Rock Blades | 40 “Y”/Rock Blades |
| Housing Thickness | 4mm |
| Side Plate Thickness | 5/16” |
| Rotor Dia. | 4” |
| Rotor Shaft Dia. | 4 1/2” |
| Blade Swing | 15” |
| No. of Belts | 2 Belts |
| 3pt Conn. Width | 27 1/2 |
| Driveline Type | Series 4 quick connect Shear bolt, 6-spline |
| Weight | 616 lbs |
| Crated Weight | 656 lbs |
| Spec | FH-FMC145 |
| Working Width | 57” |
| Overall Width | 63” |
| Min. HP Req. | 28.5 HP |
| Hitch | Cat I |
| Gear Box Rating | 65 HP |
| Cutting Offset | Zero – Centered Cut |
| Std Hammer Blades | 24 Hammer Blades |
| Optl “Y”/Rock Blades | 48 “Y”/Rock Blades |
| Housing Thickness | 4mm |
| Side Plate Thickness | 5/16” |
| Rotor Dia. | 4” |
| Rotor Shaft Dia. | 4 1/2” |
| Blade Swing | 15” |
| No. of Belts | 3 Belts |
| 3pt Conn. Width | 27 1/2 |
| Driveline Type | Series 4 quick connect Shear bolt, 6-spline |
| Weight | 646 lbs |
| Crated Weight | 691 lbs |
| Spec | FH-FMC155 |
| Working Width | 61” |
| Overall Width | 67” |
| Min. HP Req. | 30 HP |
| Hitch | Cat I |
| Gear Box Rating | 65 HP |
| Cutting Offset | Zero – Centered Cut |
| Std Hammer Blades | 24 Hammer Blades |
| Optl “Y”/Rock Blades | 48 “Y”/Rock Blades |
| Housing Thickness | 4mm |
| Side Plate Thickness | 5/16” |
| Rotor Dia. | 4” |
| Rotor Shaft Dia. | 4 1/2” |
| Blade Swing | 15” |
| No. of Belts | 3 Belts |
| 3pt Conn. Width | 27 1/2 |
| Driveline Type | Series 4 quick connect Shear bolt, 6-spline |
| Weight | 665 lbs |
| Crated Weight | 715 lbs |
| Spec | FH-FMC175 |
| Working Width | 69” |
| Overall Width | 75” |
| Min. HP Req. | 34 HP |
| Hitch | Cat I |
| Gear Box Rating | 65 HP |
| Cutting Offset | Zero – Centered Cut |
| Std Hammer Blades | 28 Hammer Blades |
| Optl “Y”/Rock Blades | 56 “Y”/Rock Blades |
| Housing Thickness | 4mm |
| Side Plate Thickness | 5/16” |
| Rotor Dia. | 4” |
| Rotor Shaft Dia. | 4 1/2” |
| Blade Swing | 15” |
| No. of Belts | 4 Belts |
| 3pt Conn. Width | 27 1/2 |
| Driveline Type | Series 4 quick connect Shear bolt, 6-spline |
| Weight | 718 lbs |
| Crated Weight | 765 lbs |
| Spec | FH-FMC195 |
| Working Width | 78” |
| Overall Width | 83” |
| Min. HP Req. | 35 HP |
| Hitch | Cat I or II |
| Gear Box Rating | 65 HP |
| Cutting Offset | Zero – Centered Cut |
| Std Hammer Blades | 32 Hammer Blades |
| Optl “Y”/Rock Blades | 64 “Y”/Rock Blades |
| Housing Thickness | 4mm |
| Side Plate Thickness | 5/16” |
| Rotor Dia. | 4” |
| Rotor Shaft Dia. | 4 1/2” |
| Blade Swing | 14” |
| No. of Belts | 4 Belts |
| 3pt Conn. Width | 27 1/2 |
| Driveline Type | Series 4 quick connect Shear bolt, 6-spline |
| Weight | 865 lbs |
| Crated Weight | 890 lbs |
Introducing the Farmer-Helper FMC, a commercial flail mower specifically designed for mowing growth between rows and mulching prunings. With its mowing width centered behind the tractor, you’ll enjoy easy control and maneuverability. The strong, reinforced deck features clump buster bars that aid in the mulching process, ensuring an efficient and clean finish.
Equipped with powerful 27-ounce all-crop hammer style blades, the Farmer-Helper FMC can effortlessly chop grass, weeds, and brush in a single pass. Its versatility makes it the ideal choice for a wide range of landscaping and groundskeeping tasks.
Upgrade to the Farmer-Helper FMC commercial flail mower and experience the difference in performance, precision, and adaptability for all your row mowing and mulching needs. Don’t settle for less, invest in the best!
Key Features:
- Centered Commercial flail has 65 HP cast-iron gearbox
- Multiple drive belts assure power to the blades.
- Adjustable rear roller with mud scraper bar, heights of 0 to 6 inches
- “Y” grass/rock blades are optional.
- Under deck clump busters
- Zero cutting width offset keeps your flail where you want it.
- Rear height adjusting roller with tapered ends to eliminate gouging when turning
- Optional hydraulic offset kit is available.
Details:
Overall Width: The Farmer-Helper FMC series has an overall width of 55″ to 75″ depending on the size of the unit.
Cutting Width: The Farmer-Helper FMC series has a tilling width of 49″ to 69″ depending on the size of the unit.
Weight: The Farmer-Helper FMC series has a weight of 581 lbs to 718 lbs depending on the size of the unit.
HP Requirements at PTO: The Farmer-Helper FMC series requires 24 – 65 PTO horsepower depending on the size of the unit.
Cutting Height: The Farmer-Helper FMC series has a 0″ – 6″ Adjustable to meet various height requirements
Housing Material Thickness: The Farmer-Helper FMC series has a housing of 4mm.
Side Plate Thickness: The Farmer-Helper FMC series has a side plate thickness of 5/16″.
Blade Type: The Farmer-Helper FMC series uses standard hammer blade or reversible Y-blades. Each hammer blade weighs 1 lb. 11 oz made of cast steel (cast steel is much more durable than cast iron). The Y-blades weighs 10.9 oz. Use the hammer blades for clearing saplings (3″ diameter or less), and the Y-blades for grasses.
Number of Blades: The Farmer-Helper FMC series uses 20 – 28 hammer blades or 40 – 56 Y-blades, depending on the size of the unit.
Precision Blade Overlap: On the Farmer-Helper FMC series the blades are staggered precisely with no gap in the mowing area. Blade overlap is important to achieve an even cutting result.
Rotor Rotation – Reverse: The rotor spins in the opposite direction as the wheels of the tractor when traveling forward. This allows the blades to shear the material as it is folded forward by the mowers. The material is then thrown up and over the rotor.
Rotor Tube Diameter: 4 1/2″- Heavy-duty steel tubing for long life.
Balanced Rotor Tube: The rotor tube is balanced to reduce vibration and ensures that the mower runs smooth, and reduces wear on the bearings.
Rotor Swing Diameter: 15″ Large swing so that the blades build required inertia.
Hitch Type: Category 1, standard 3-point.
No Offset, Perfectly Centered: The Farmer-Helper FMC series is perfectly centered so you can pick the size to match your tractor’s wheel width.
Drive Belts: The Farmer-Helper FMC series uses 2-4 belts depending on the size of the unit.
Gearbox Rating: The FMC series is rated 65 hp. Heavy-duty proved oil bath gearbox for long life.
Driveline / PTO Shaft: Shear Bolt PTO Shaft for Standard 1-3/8” 6-Spline PTO
Finish: Baked-on powder coat, powder coat is superior to paint.
Support Before and After the Sale: At Betstco our service department is staffed with professional technicians that inspect each machine before it is shipped. This ensures that you get a trouble-free machine from the get-go. When you need technical help or parts, our courteous staff can help you get what you need from our fully stocked warehouse. We keep a full line of replacement parts, and we can ship parts within 24 hours.
