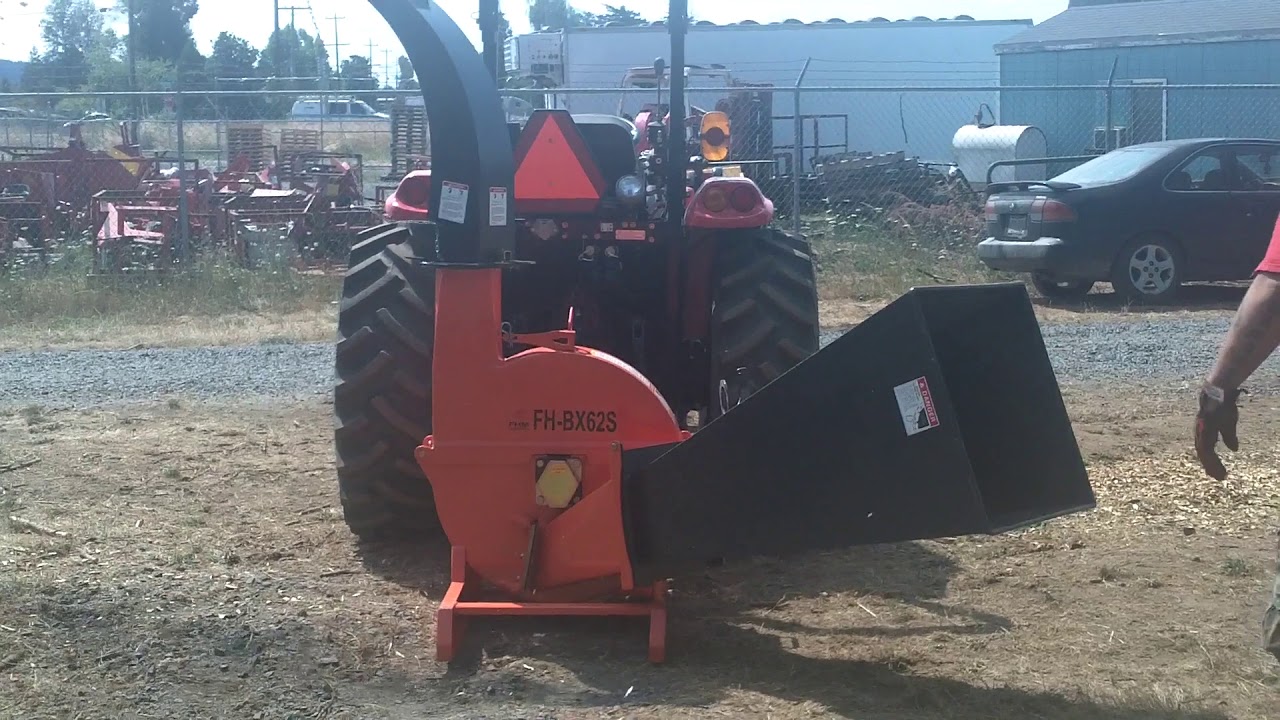

Farmer-Helper FH-BX62S 7” Self Feeding Wood Chipper
Feed is:
Gravity Pinch/Pull
Powered By:
Tractor PTO
25- 45 HP
Playlist
0:16
Who is Farmer-Helper?
Farmer Helper Machinery Co., Ltd (FHM) was established in 2009. The factory area is more than 20,000 square meters and houses 4 Metal laser cutting machines and more than 80 processing machines.
FHM manufactures a full range of high-quality implements for small to medium-sized tractor owners across the world. Farmer’s Helper has become an integral manufacturing premise for agricultural machines. Our team’s priority is customer success and satisfaction. We constantly improve our machines to meet customer demands and expectations.
Key Features:
Designed with a 30” 205 lbs. Flywheel with 4 reversible Chipping Blades.
Blowing force is maximized with air intake vents on the side of the chipper. Air enters through the vents and powers the chips out the chute up to 20 feet.
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips existing the machine. This provides more consistent chip size and allows you to propel the chips further.
The feed chute easily folds up for storage, minimizing the storage space for the machine while still assembled.
Easily control where you want the chips with the double adjustable exit chute. The chute swivels 300 degrees and the top deflector adjusts the distance.
The Machine comes with a 6 spline Series 5 80cm (31.5”) PTO Shaft.
This machine is capable of chipping material up to 7” in diameter.
For full capability, it is recommended for tractors with 30 to 75 HP.
The Farmer-Helper BX Chipper is a rugged and simple-to-use tool for versatility and productivity. Easy to mount on a three-point hitch and PTO tractor, it offers convenient transport and use. The chipper comes with a large 30-inch flywheel and four reversible blades to efficiently serve your chipping needs.
Additional features include air vents for added performance, twig breaking paddles to prevent jamming, a hinged feed chute for transportation and storage ease, and a direction-adjustable exit chute for wood chip control. The chipper comes equipped with a PTO shaft and is able to process 7-inch diameter wood.
Fitted for tractors rated 30 to 75 horsepower, the BX Chipper uses a Group 5 shear pin PTO drive type. With an operating speed of 540 RPM and 30-inch diameter rotor, 3/4 inch thick, choose the Farmer-Helper BX Chipper as a reliable and powerful chipping choice.
| Model | FH-BX62S |
| Maximum Chipping Capacity | 6.5” x 12” Material |
| Min. Operation PTO Horsepower | 25 HP |
| Max Capacity PTO Horsepower | 45 HP |
| Flywheel Weight | 205 LBS |
| No. of Blades | 4 + 1 |
| Rotor Size & Thickness | 30” dia x 3/4” |
| Feeding System | Pinch & Pull Gravity |
| Hopper Folded | 50” L x 52” W x 74” H |
| Hopper Opening | 25” x 25” |
| Mounting System | 3 Point Hitch Cat-I |
| Discharge Rotation | 360 degrees |
| Discharge Height | 80” |
| PTO Drive Line | Series 05 Shearbolt Driveline |
| Net Weight | 835 lbs |
| Gross Weight | 915 lbs |
Submit your review | |
This wood chipper has exceeded my expectations. I originally wanted to purchase another brand chipper due to its excellent reviews. I did not find any reviews for this chipper (more on that later). The reason I did not purchase the other brand chipper was primarily the delay required to even order it, which was three months. I compared the specifications of the two chippers and found that the Betstco chipper I purchased compared favorably, so I bought it (the Betsco was also cheaper). I found the process to register the chipper and do this review to be confusing and difficult. The terms used on the registration were not the same as those on the sales order, so I don't know if I did it correctly or not. I suspect many potential reviewers give up due to the poor directions and confusing terms. Nevertheless, based on my preliminary review, the FH-BX62S is an excellent chipper.
