VL-AGL Silver & Gold Ditch Bank Flail Mower

This is a premium product that offers higher quality parts and specifications. This product is designed with performance in mind.

SKU: VL-AGLB105, VL-AGLB125, VL-AGLB145, VL-AGLB165, VL-AGLC185

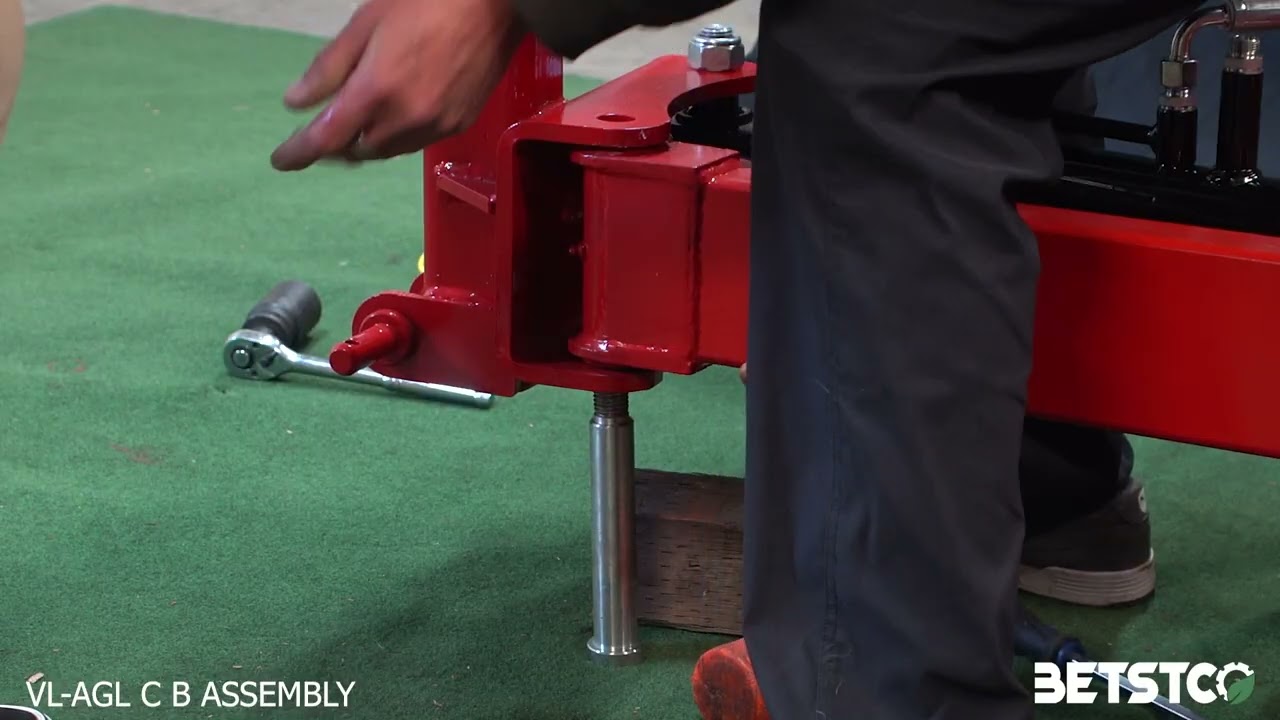

Assembly Video:

find your tractors pto hp here

2 year warranty with optional 4 years

working width

Working Width

41″ – 73″

powered by pto power

Powered By:

Tractor PTO
25- 65 HP

hammer blades

Comes with 14 oz Blades



brush

Suitable for:

Brush up to 2″ thick

Select Ditch Bank Flail Mower Below to Purchase

Description of MOWER:

Looking for a better way to cut the ditch or bank? Our hydraulic offset pivoting verge mower is flexible and perfect for the job. This verge flail mower will make your project look great. Works just like any normal flail mower pulled directly behind the tractor and with the standard hammer blades, it can mulch up to 2” in diameter objects. Same, amazing AGL mower but with premium features to set it apart from the rest.

Key Features of Ditch Bank Flail Mower:

  • AGL Silver(AGLB) has a Multiple V-Belt drive with automatic belt tension & holder for hoses.

  • AGL Gold(AGLC) also has a Multiple V-Belt drive with automatic belt tension along with hydraulic flow control for smoother movement of the mower.

  • Cat I – 3 pt w/s Spline PTO drive shaft

  • Balanced rotor shaft.

  • Hydraulic up 90° and down 60° movement. Side to side movement for hard to reach areas.

  • Rear roller with adjustable cutting height.

  • 65 horsepower gearbox.

  • Uses EF & EFG series blades with standard all-purpose hammer blades.

  • Articulates 100% passed the right arm horizontally and adds an additional 20” in the vertical position.

  • Extra strong and built with safety in mind.

  • Durable Powder Coat Finish.

Details of the MOWER:

Overall Width of Ditch Bank Flail Mower: The VL-AGL series has an overall width of 47″ to 79″ depending on the size of the unit.

Cutting Width of Ditch Bank Flail Mower: The VL-AGL series has a tilling width of 41″ to 73″ depending on the size of the unit.

The weight of Ditch Bank Flail Mower: The VL-AGL series has a weight of 660 lbs to 875 lbs depending on the size of the unit.

HP Requirements at PTO: The VL-AGL series requires 25 – 65 PTO horsepower depending on the size of the unit.

Cutting Height: The VL-AGL series has a 0″ – 6″ Adjustable to meet various height requirements

Housing Material Thickness: The VL-AGL series has a housing of 1/4″ thick.

Side Plate Thickness: The VL-AGL series has a side plate thickness of 1/4″.

Blade Type: The VL-AGL series uses a standard hammer blade. Each hammer blade weighs 14 oz made of cast steel (cast steel is much more durable than cast iron).  Use the hammer blades for clearing saplings (2″ diameter or less) and for grasses.

Number of Blades: The VL-AGL series uses 16 – 32 hammer blades, depending on the size of the unit.

Precision Blade Overlap: On the VL-AGL series the blades are staggered precisely with no gap in the mowing area. Blade overlap is important to achieve an even cutting result.

Rotor Rotation – Reverse: The rotor spins in the opposite direction as the wheels of the tractor when traveling forward. This allows the blades to shear the material as it is folded forward by the mowers. The material is then thrown up and over the rotor.

Rotor Tube Diameter: 4 1/2″- Heavy-duty steel tubing for long life.

Balanced Rotor Tube: The rotor tube is balanced to reduce vibration and ensures that the mower runs smooth, and reduces wear on the bearings.

Hitch Type: Category 1 standard 3-point.

Pivot Offset From Center Mount: This feature allows for an offset from the center to the right of the tractor. This feature is helpful for mowing around fences, buildings; walkways, etc. From the center of the PTO, the mower extends 37″ to 71″ depending on the size of the unit.

Hydraulic Offset: The hydraulic cylinder permits the carrier frame to be moved under your command. This permits you to control the cutting position of the mower. Designed so that you can get around rows, trees, fence lines, or whatever else is in your path. This is connected to a Remote Hydraulic designed to power the cylinder (also known as a 2-way valve) or the rear remote on your tractor design to power the cylinder. Hydraulic Requirements: Hydraulic sources must be constant flow for powering Control Valve. We recommend the use of Front Loader Style Control Valve with Float Option. Float spool connected to the vertical pivoting cylinder will allow the mower to float and naturally follow the ground contour.

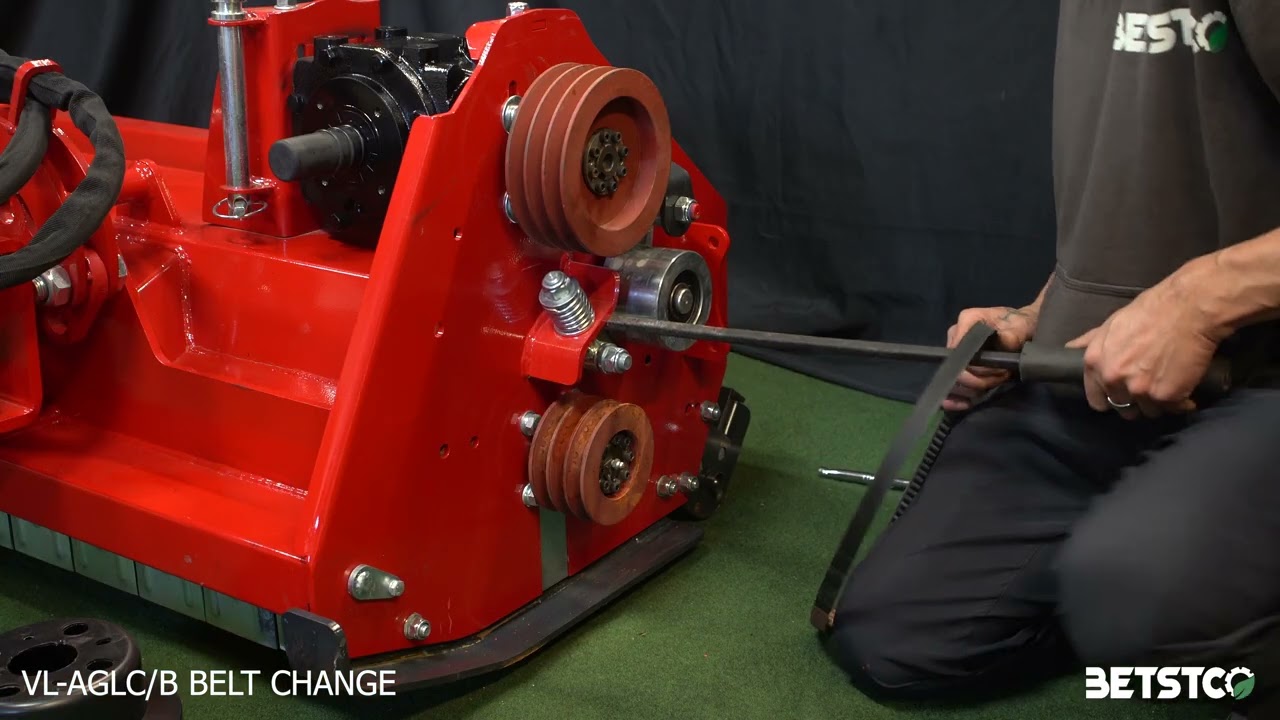

Drive Belts: The VL-AGL series uses 2 – 4 belts, depending on the size of the unit.

Gearbox Rating: Up to 65 hp. Heavy-duty proved oil bath gearbox for long life.

Driveline / PTO Shaft: Shear Bolt PTO Shaft for Standard 1-3/8” 6-Spline PTO

Finish: Baked-on powder coat, powder coat is superior to paint.

Warranty: 2-year parts warranty with an optional 2-year extension.

Support Before and After the Sale: At Betstco our service department is staffed with professional technicians that inspect each machine before it is shipped. This ensures that you get a trouble-free machine from the get-go. When you need technical help or parts, our courteous staff can help you get what you need from our fully stocked warehouse. We keep a full line of replacement parts, and we can ship parts within 24 hours.
