BC-XP Gear Drive L-Blade Tiller
Made in India
Working Width
36″ – 60″
Powered By:
Tractor PTO
15- 40 HP

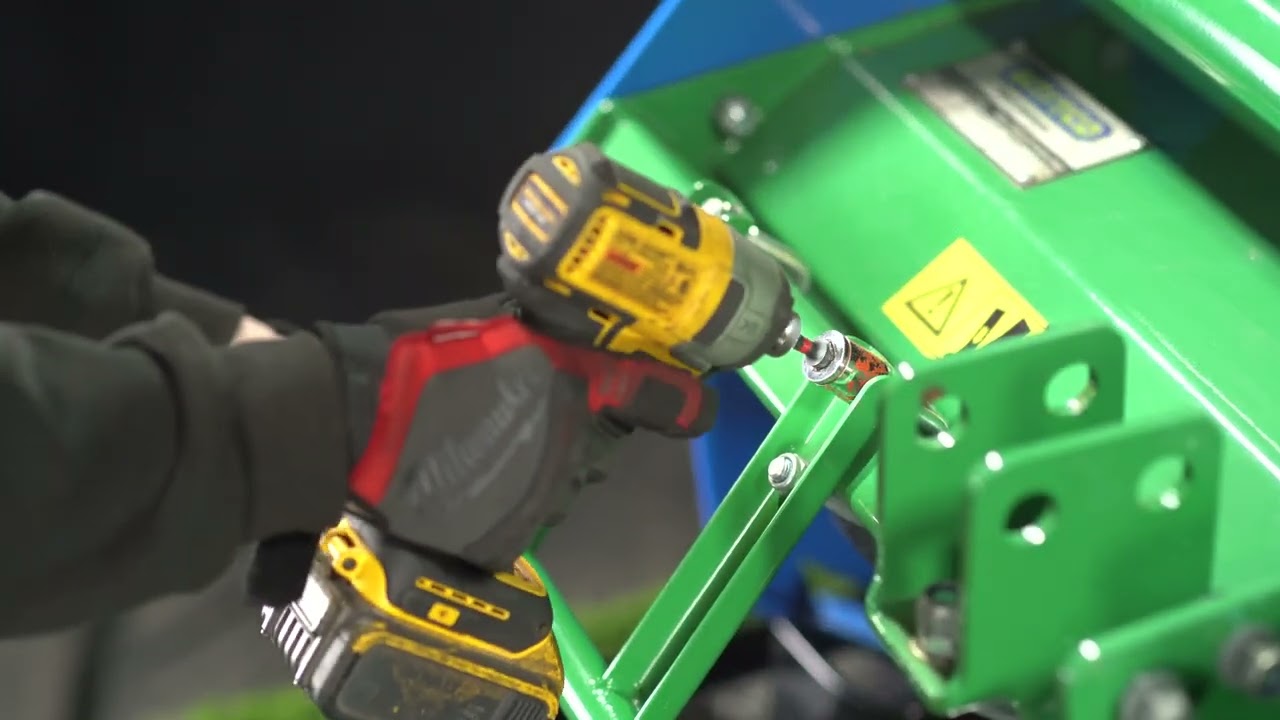

Playlist
Betstco Started in 1995 in Oregon. We began selling Taskmaster brand tractors. We switched over to tractor implements a few years after, and we moved to Creswell, OR. We provide premium options to our customers and have our machines manufactured by reputable companies around the world.
We guarantee our customer’s satisfaction by putting our machines through rigorous tests before approval to the market. We offer a 1 year parts warranty on all 3 point attachments.
The Xeos Tiger Rotary Tiller is a versatile and efficient implement designed for soil preparation in a variety of agricultural settings, such as nurseries, vineyards, orchards, and hobby farms. Compatible with tractors ranging from 15 to 40 horsepower, this single-speed gear drive tiller ensures reliable performance with minimal load on the tractor.
Each flange of the Xeos Tiger Rotary Tiller is equipped with 6 heat-treated blades that deliver efficient tilling performance. The tiller’s design allows for effective soil preparation, making it an ideal choice for various agricultural applications.
For safety and convenience, the tiller comes with a standard front safety guard, a PTO clutch joint, and a tool kit. The crate also includes a tool bag and a grease gun for easy maintenance and adjustments. The tool kit contains essential tools such as wrenches, a socket, lynchpins, and an Allen wrench.
In summary, the Xeos Tiger Rotary Tiller is an excellent choice for soil preparation in various agricultural settings, providing efficient performance and compatibility with tractors ranging from 15 to 40 horsepower. With its robust design and user-friendly features, this tiller is a valuable addition to any farmer’s equipment lineup.
These units come with a tool bag and a grease gun in the crate.
Included in photo top to bottom (tool bag on the left)
Grease gun
19mm / 18mm box end wrench
19mm / 18mm open end wrench
16mm / 17mm box end wrench
16mm / 17mm open end wrench
13mm / 15mm open end wrench
19mm socket with 1/2 inch drive L- handle
2 lynchpins
8mm allen wrench
Model | XP 53 | XP 59 | XP 63 | XP 73 |
Standard Tine Rotation | Yes | Yes | Yes | Yes |
Working Width | 53″ | 60″ | 64″ | 74″ |
Overall Width | 59″ | 66″ | 70″ | 80″ |
Min-Max HP | 25-40 HP | 25-40 HP | 30-45 HP | 35-50 HP |
3 Point Hitch | Cat l | Cat l | Cat l | Cat l |
Offsetable Distance from Center | Centered | |||
Gear Box Maximum PTO HP | 50 HP, 540 RPM, SINGLE SPEED | |||
Number of Flanges | 7 | 8 | 9 | 10 |
Number of L shaped Tines | 42 | 48 | 54 | 60 |
Maintenance free oil bath transmission | Gear Drive Transmission | |||
Rotor swing dia | 18″ | 18″ | 18″ | 18″ |
Adjustable tilling depth | 2-7″ | 2-7″ | 2-7″ | 2-7″ |
PTO slip clutch | Yes | Yes | Yes | Yes |
540 rpm pto drive line | Series 4 (T4-800) | |||
Weight | 573 lbs | 595 lbs | 650 lbs | 705 lbs |
Crated weight | 630 lbs | 682 lbs | 732 lbs | 787 lbs |
Product Description | The Xpert series rotary tiller are single speed gear drive tractor operated implements. Specifically designed for 25 to 50 HP tractors. Specially applicable for for soil preparation in Nurseries, Vineyards and Orchards. Each flange has 6 heat treated blades, fitted in a special arrangment which reduce the load on tractor and gives fine finish performance. Standard attachment front safety guard,clutch PTO joint and tool kit. | |||
Key Features | * Available in four model XP53, XP59, XP63 and XP73 | |||
* Suitable for 25 to 50 HP tractor | ||||
*6 Blades on each flange | ||||
*Available in “L” shape blade, 70 mm x 7 mm | ||||
*50 Hp and 540 RPM Single Speed gear drive model | ||||
* 18″ rotor swing diametre | ||||
